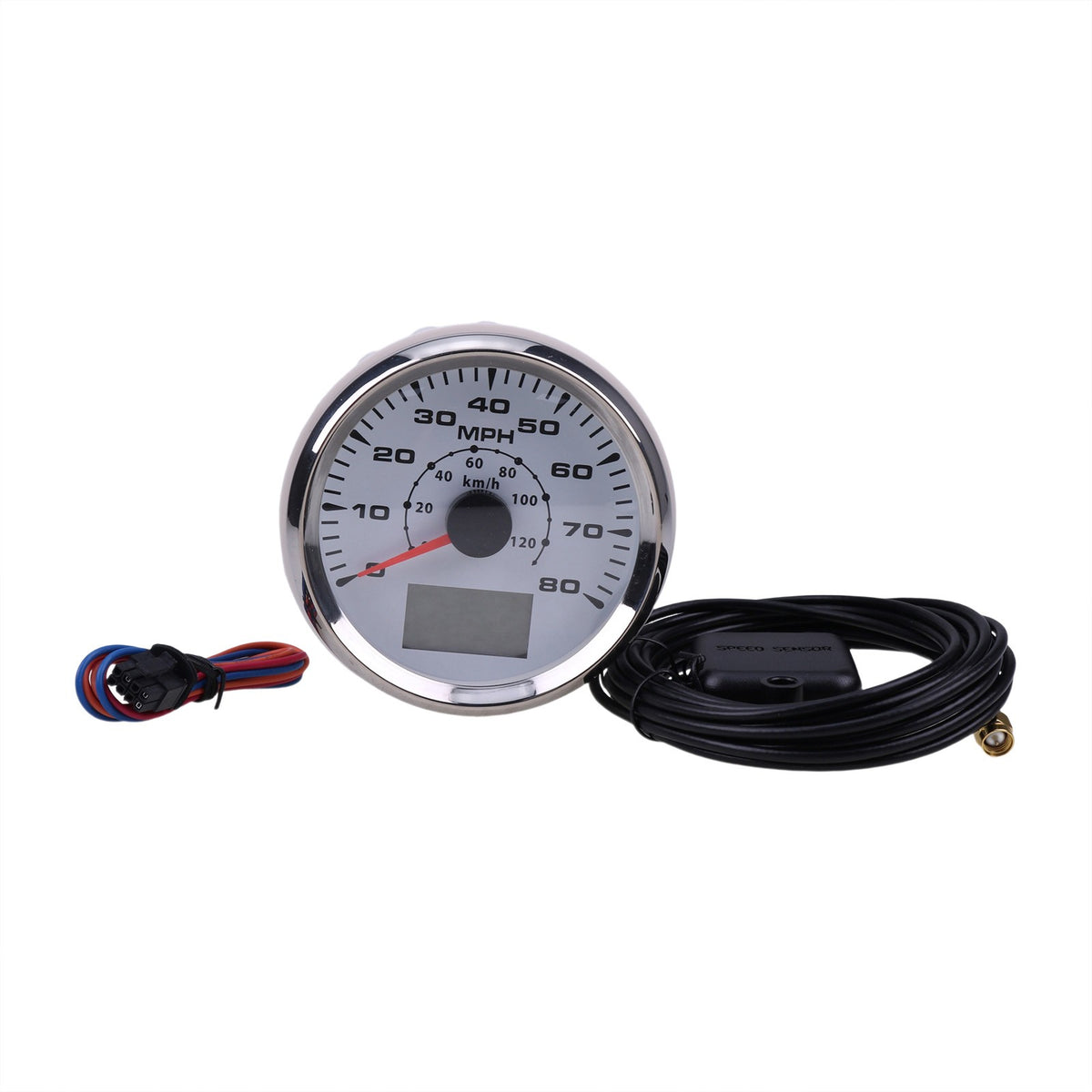

85mm Universal GPS Speedometer Odometer with Backlight Trip 12V/24V 80MPH 0-120km/h

85mm Universal GPS Speedometer Odometer with Backlight Trip 12V/24V 80MPH 0-120km/h. The listing details below summarise the available product information and reference codes.

Product details

• Product type: Sensors

Additional supplier details

85mm Universal GPS Speedometer Odometer w/Backlight Trip 12V/24V 80MPH 0-120km/h Store Categories Store Categories Part Number: 912-00056 Feature: -Suitable for all cars, tractors, vans, vessels, boats, yachts, etc. -The signal comes directly from the satellite signal receiver (GPS Speed Sensor) -The gauge has the advantages of high precision, quick location confirmation and short start up time. -IP67 waterproof and dustproof grade -Stepper motors for full range of stepping gauges, great feature with its less power consumption, longer life, higher precision, etc. -With curved glass (with anti-fogging function) -With ultra-wide working voltage design( long-term operating voltage: 9-32V, Maximum up to: 36V (≤ 1 min)). Specification: Cut an 85mm (3 3/8") hole in the panel and allow a clearance of 70mm (2 3/4”) behind the panel to fit the gauge. Put the gauge in the hole. Using M4 nut and C type bracket to seal up the gauge. For the GPS antenna, you should securely fasten it in the flat position, black side upwards, preferably outside (or inside front windscreen) so that it has a clear view of the sky to pick up satellite signal. Connect the antenna cable to socket in the back of the gauge. And do not cut cable. It shows Current Speed, TRIP/COG(choose one), ODO(cannot be reset). If you need other color faceplate, pls. search for ASIN B07KNR2ZFT or B07KNR7NR7. Backlight: Red Green Blue White Yellow Orange Purple Light Green or automatic. 9-32VDC(12VDC/24VDC) Working Voltage,1 year Warranty, 100% Waterproof and anti-fogging protection. Technical Data: Fixing dimension: 85mm(3-3/8") Indicating Range: 0-80MPH 0-120km/h Working Voltage: 12V/24V Trip Range: 999.9 miles ODO Mileage Range: 99999.9 miles (not adjustable) Backlight: Red Green Blue White Yellow Kelly Orange Purple or automatic Operation mode: LCD display, stepper motor Protection grade: IP67 Other: waterproof and anti-fogging On Aug 10, 2025 at 22:48:31 PDT, seller added the following information:

Check before ordering

Compare the listed reference codes, model information and photos with your existing part. Compatibility and specifications should be confirmed before purchase.
